Fully Automatic Gift Box Making Machine With Servo Motor Touchscreen HMI

Wenzhou Zhongke Packaging Machinery Co., Ltd.
Contact Now

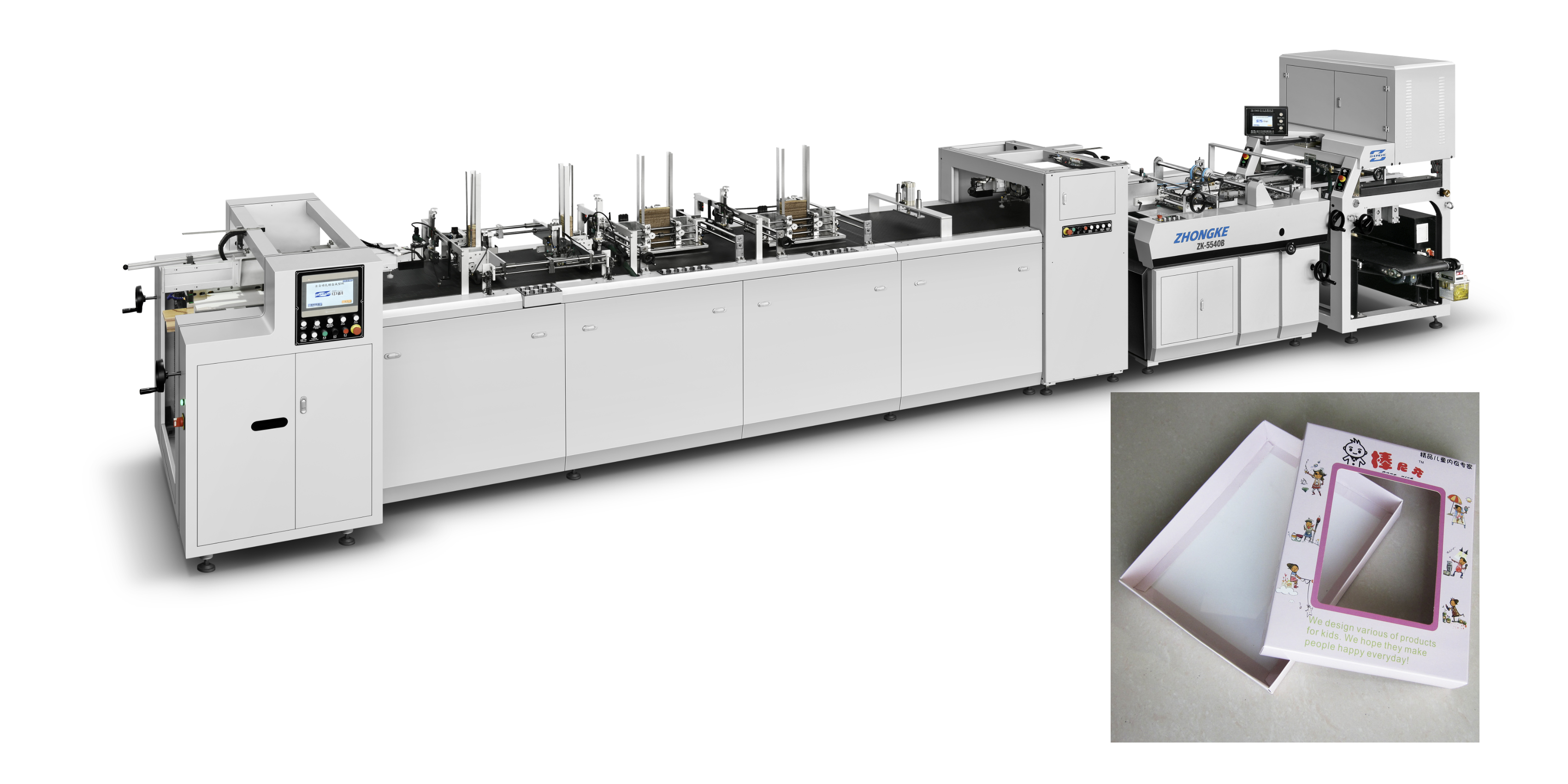

Fully Automatic Gift Box Making Machine With Servo Motor Touchscreen HMI

Brand Name : Zhongke

Model Number : ZK-5540B

Certification : CE, ISO900

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : 30% deposit+70%balance before shipment

Supply Ability : 10 sets per month

Delivery Time : 1month after received 30% deposit

Packaging Details : wooden pallet or wooden case

Name : Fully Automatic Gift Box Making Machine

Net weight : 2600kg

Height of paper stockpile : 350mm

Motor : Servo Motor

Control : Touchscreen HMI

Noise level : ≤80dB

Air supply : 80(Litre/min)

Electrical powe : 19KW

Contact Now

Fully Automatic Gift Box Making Machine With Servo Motor Touchscreen HMI



Gift Box Making Machine Description:



This Gift Box Making Machine adopts servo motor, PLC programmable controller, photoelectric tracer, touchscreen HMI and other systems, integrating mechanical, electric and pneumatic systems, making it possible that automatic paper feeding, inner board feeding, edge folding and gluing and box forming are complete in one operation. It is applicable for the production of wide-edged rigid boxes made 250-400g white cardboard, white board and corrugated paper. So it can be widely used for the production of wide-edged rigid packing boxes suitable for food, cosmetics, medicine, health care products, toys, and commodities.



After box forming, changing the mechanism to achieve twice bubble pressing.



1. High automation,greatly save labor and increase efficiency.

2. Adopts,PLC and touch screen Type man-machine control system,simple operation,easy to learn

3. Rational structure,low fault rate,with automatic fault alarm and trouble shooting

4. with memory function,can save and recall setting.

5. with timing control glue heating function.

6. servo optical fiber positioning system,high positioning accuracy(±0.2mm)

7. Robot arm automatic pick up and draw box, avoid scratch

8. Servo control box wrapping,the four heads can work independently,suitable for various styles of box



Gift Box Making Machine  Main Specifications





Sizes of paper

A=Windth;

B=Longth

Amin 220mm 220mm 300mm
Amax 620mm 540mm 540mm
Bmin 220mm 220mm 280mm
Bmax 740mm 630m 630mm
Cardoard blank thickness BEF 300-450g/ 300-450g/

Box size



L=Length;

W=Windth;

H=Height;

Lmin 120mm 120mm 120mm
Lmax 550mm 340mm 340mm
Wmin 120mm 120mm 140mm
Wmax 415mm 255mm 255mm
Hmin 25mm 25mm 35mm
Hmax 130mm 70mm 60mm

Turn in depth

:R

Rmin 20mm 20mm 20mm
Rmax 70mm 70mm 60mm

Broad-side edge width

:S

Smin / / 6mm
Smax 10mm
Power 380V 50Hz
Noise level ≤80dB
Speed 1800-2700(Pcs/h)
Cardboard pile height 350mm
Load-bearing of cardboard laydown platform 20kg
Electrical power 19kw
Capacity of hot melt applicator 8(Litre)
Air supply 80(Litre/min)
Net weight 2600kg
Machine overall dimension 1100mmx1700mmx2200mm






Note

The production speed depends on the material used, glue specifications and how skillfully the operator operates the machine.

L=Hx2+20mm.

the length of small box: L=Hx2+20mm

The forming of wide-edged boxes also depends on the material, it shall be subject to the real samples.

The specification is subject to change without notice.



High quality service



7X24-hour Telephone Consulting Service is available.



Reply and solution will be provided in the shortest time upon customer’s service request.



After-sales Support is available on a 7X24-hour basis, leaving no worries for customers.



Equipment transportation and installation & commissioning are all free.

After-sale service personnel will tell you how to maintain the equipment.



After delivery of equipment, after-sale service personnel will give you a follow up phone call until you are satisfied.
